Product Overview

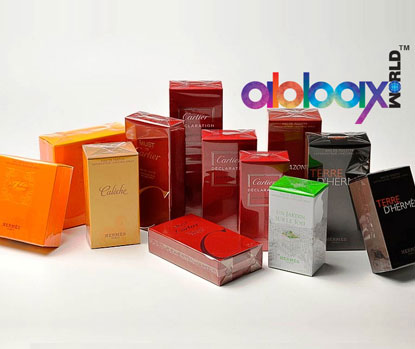

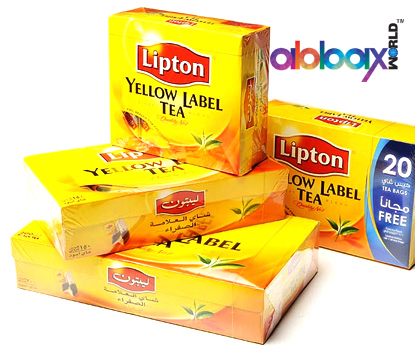

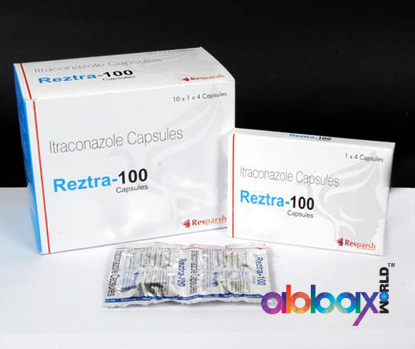

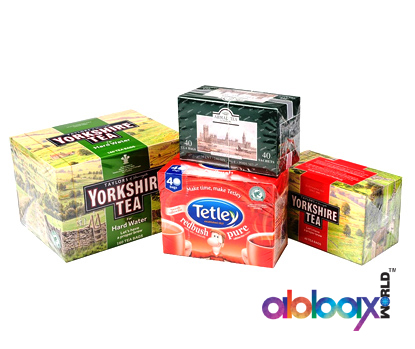

  • Product: Any Cartons like Cosmetic / Pharma Cartoons (square / Rectangular) up to 90mm Max Height.
  • Purpose of the machine: To Over Wrap Cartons with Heat Sealable BOPP Film 25 to 30 microns.

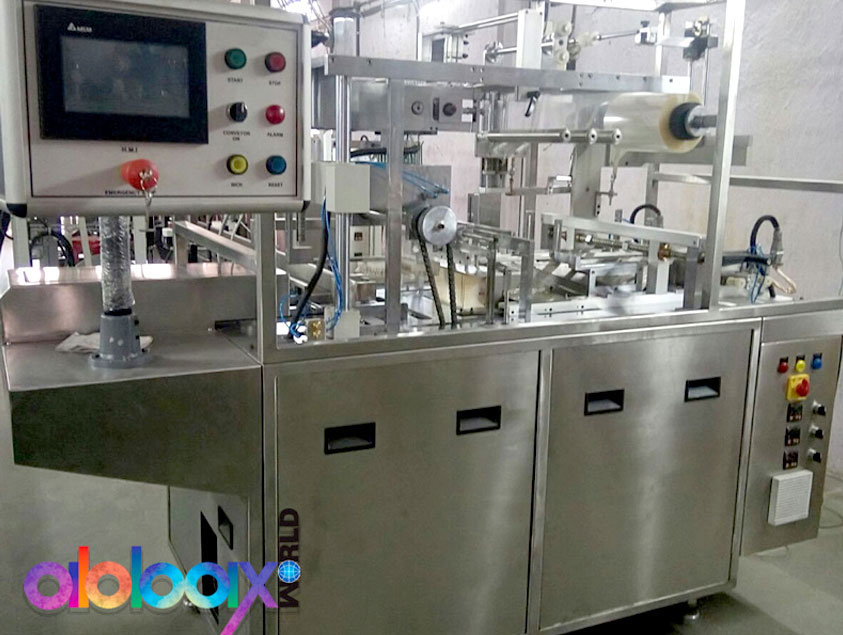

Description of Operation

  • The Carton will be loaded manually or can be connected to Cartooning machine on the input conveyor (If the cartooning will be Horizontal type).
  • At the end of the conveyor, each Carton are separated by the main pusher and pushed to the wrapping station.
  • The film will be drawn and cut to the required perfect size with the help of Servo PLC operation.
  • Tear Tape provided as per your requirement which is draw with BOPP film with provided v-notch cut.
  • The Carton will pick up the film when pushed up to the wrapping station.
  • The flaps will be folded and sealed by Folder and heaters respectively.
  • The Ends will be folded by pair of Folders and sealed with heater body.

Scope of Supply

  • Main Machine
  • Input Conveyor

Technical Specification

Power Input Total Power require 2.5 KW 3-phase 440V AC
Motor & Gear Box Non-flame proof, 1HP for Main Motor Make Siemens / Hindustan with Bonfigloli
Make Gear Box & 0.75KW Servo Motor Make Panasonic / Techo for Film draw operation with require Exact Cut Length.
Air Input 5 kg /cm2 (4 CFM) Dry Compressed Air.
Type of seal One Side and two ends with Dot if require (Total three Sides Seals) with overall 1KW heater capacity.
Packing material Heat treated Biaxial Oriented Poly Propylene. (B.O.P.P.) 25 to 30 Microns thickness.
M/C suitable to Wrap Any size, as given with the help of change parts.
Change over parts Pusher Plate, Fingers (Tuckers), Folders, Heater Body Plates, SS Heater body Guides.
Ideal Output Up to 35 Packs/Minute Max depending on the size & rigidity OR stiffness of the carton.
Input conveyor Endless type made of Shilon-40.
Conveyor Dimensions 2 Mt. Long, 6” wide, 1/8 “Thick. ( Dimensions subject to change according to carton size)
Conveyor Drive Through the machine/separate depending on the size & weight of the cartons.
Control Panel Will be provided SS 304 Control Panel with PLC Logic operational work & also provided HMI touch screen for easily operational work.
Accessories Temperature Controller – PID type Make – Selectron TC-203
Heater & Probe – 1Kw overall Make – Heatrej dia.3/8” with 230V & 200W
Probe – FEK Washer type
Sensor – Proximity sensor dia. 12mm OR 18mm PNP NO type 10-30V DC Make –P & F, HI-Tech, Wangular, Datalogic (as per requirement of Application)
Pneumatics – Tear Tape & Side Seal Cylinder Make – Festo / Janatics / Pneumax
Solenoid Valve - Make – Festo / Janatics / Pneumax
Fittings & Air Tube - Make – Festo / Janatics / Pneumax
FRL Unit - Make – Festo / Janatics / Pneumax
Guards All Guards with SS 304 Frame structure with Dull Buff finish as per your requirement.
Also Top Frame with SS 304 Sq. Pipe with Provided Polycarbonates / Acrylic covers.
Weight Approx. 750 Kg.

Special Features

Flexibility Machine suitable for changing over from one size to another with the help of easy change over.
Ease of operation The machine is designed for simple operation. Especially the change over which consists of maximum tool-less operation.
Change over Easy and fast change over with simple change parts ie. Within a Half an Hour. Also suitable for any size of the product (but specify initially cartoon sizes)
Quality Over Wrap finish at par compared with any Multinational Machine.
